Showing 17–32 of 62 results
Engine Model & type Top Brand VP10G190E354(CHINA II) Top Brand ViD1 0G190E214(CHINA I) Gross pover 140/1 88/1900 KW /HP/rpm Net pover 127/170/1900 KW /HP/rpm Piston displacement 9.726 L Number of cylinders 6 -126 X 130 mm (bore X strol?e) Maximum torque 900 N·m@1400-1 600 rpm Walkinghydraulicsystem Type Electronic control Traveling pump (Rexroth) 2 Traveling motor…
Parameter name SD32 (Standard version) SD32C (Coal version) SD32W (Rock version) SD32D (Desert version) Performance parameters Operating weight (Kg) 40200 40500 40900 39500 Ground pressure (kPa) 97.7 98.4 99.4 96 Engine Engine model WP12/QSNT-C345 QSNT-C345 WP12/QSNT-C345 QSNT-C345 Rated power/rated speed (kW/rpm) 257/2000，258/2000 257/2000 258/2000，257/2000 257/2000 Overall dimensions Overall dimensions of machine (mm) 8650*4130*3760 8650*4755*3760 8650*4130*3760…
Sales model Unit XE270DLL Operating weight Kg 28300 Bucket capacity m³ 0.4 Engine Model / QSB7 Direct injection / √ Four strokes / √ Water cooling / √ Turbo-charging / √ No. of cylinders / 6 Output power kw/rpm 150/2050 Maximum torque/speed N.m/rpm 825/1250 Displacement L 6.7 Main performance Travel speed km/h 6.1/3.8 Swing speed…
Operating weight Kg 14800 Bucket capacity m³ 0.32~0.72 Engine Model / QSB4.5 No. of cylinders / 4 Rated power kw/rpm 90/2200 Maximum torque/speed N.m/rpm 470/1500 Displacement L 4.5 Main performance Travel speed km/h 5.3/3.2 Swing speed r/min 11.7 Gradeability ° ≤35 Ground pressure kPa 38 Hydraulic system Rated flow of main pump L/min 123.5×2 Main…
Sales model Unit XE155DK Operating weight Kg 14600 Bucket capacity m³ 0.32-0.71 Engine Model / QSF3.8 Direct injection / √ Four strokes / √ Water cooling / √ Turbo-charging / √ No. of cylinders / 4 Output power kw/rpm 93/2200 Maximum torque/speed N.m/rpm 500/1300 Displacement L 3.8 Main performance Travel speed km/h 5.3/3.2 Swing speed…
Technical Specification Weight KG 6500 Required Oil Flow L/MIN 280-350 Working Pressure KG/CM2 270-280 Impact Rate B.P.M 100-200 Chisel Diameter MM 中210 Chisel Length MM 1850 Applicable Excavator TON/M3 65-75
Item Unit Parameter Product Name – DL210 Operating weight Kg 16500 Bucket capacity m3 3.9 Rated power kW 162 Dozer Max.lift height mm 1000 Dozer Max.cutting depth mm 380 Dozer Max.titing range mm 500 Max.drawing force kN 136 Articulation angle ° 36 Min.turn radius mm 6985 Climb ability ° 30 Wheel base mm 3410
Parameter Unit SD16 Overall weight kg 17000 Engine brand – WEICHAI Engine model – WD10G178E25 Rated power/rated speed kW/rpm 131/1850 Machine external dimensions mm 5140*3455*3032 Track center distance mm 1880 Track shoe width mm 510/560/610 Ground contact length mm 2430 Fuel tank capacity L 315 Blade type – straight tilt / U blade Blade capacity…
Parameter name SD32 (Standard version) SD32C (Coal version) SD32W (Rock version) SD32D (Desert version) Performance parameters Operating weight (Kg) 40200 40500 40900 39500 Ground pressure (kPa) 97.7 98.4 99.4 96 Engine Engine model WP12/QSNT-C345 QSNT-C345 WP12/QSNT-C345 QSNT-C345 Rated power/rated speed (kW/rpm) 257/2000，258/2000 257/2000 258/2000，257/2000 257/2000 Overall dimensions Overall dimensions of machine (mm) 8650*4130*3760 8650*4755*3760 8650*4130*3760…
Main Specifications Rated load capacity (Kg) 3000 Operating weight with standard bucket (Kg) 9700 Bucket capacities (M3) 1.7 Wheelbase (mm) 2850 Overall Dimensions L*W*H (mm) 7383x2348x3152 Engine Model WEICHAI WP4.6NG125E473 Rated power (kW) 92 Displacement (L) 4.58 Operating Specifications Dump clearance (mm) 3000 Articulated angle (°) 36±1° Hydraulic system Implement system type Quantitative shunt hydraulic…
Item Unit SY20C Operating weight kg 1750 Bucket capacity m3 0.04 Engine Engine model – 3TNV70 Output power kW/rpm 10.3/2200 Max. torque N.m 48.2-52.4 Displacement L 0.854 Main performance Travel speed(H/L) km/h 3.7/2.1 Grade ability % 70 Rotary speed r/min 10 Ground pressure kPa 29.1 Bucket digging force kN 15.2 Arm digging force kN 9.2…
Specification Unit XT760 Rated power kW 60 Rated speed rpm 2300 Bucket capacity m³ 0.6 Rated load kg 1100 Operating weight kg 3670 Dumping clearance mm 2405 Dumping reach mm 680 Max.travel speed km/h 12 Front turning radius without bucket mm 1330 Front turning radius with bucket mm 2290 Ground clearance mm 182 Diesel fuel…

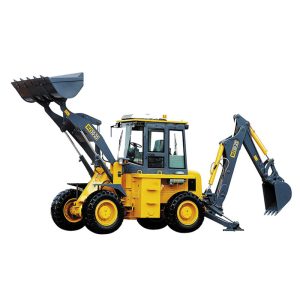

Product Model SBH388 Overall Operating Weight 8200KG L*W*H 6230×2365×3752 Wheel base 2200mm Min. Ground Clearance 300mm Bucket Capacity 1.0m3 Breakout Force 38KN Loading Lifting Capacity 2500KG Bucket Dumping Height 1025mm Bucket Dumping Distance 1048mm Digging Depth 52mm Backhoe Capacity 0.3 m3 Max. Digging Depth 4085mm Swing Angle of Excavator Grab 190o Max. Pulling Force 39KN
Description Unit Parameter value Operating weight Kg 7460 Bucket capacity m3 0.3 Engine Model / V2607-DI-TE3B No. of cylinders / 4 Output power kw/rpm 43/2000 torque/speed N.m 225.8/1400-1800 Displacement L 2.615 Main performance Travel speed(H/L) km/h 5.4/2.9 Rotating speed r/min 10 Gradeability ° 35 Ground pressure kPa 33.5 Bucket digging force kN 57 Arm crowd…
Item Parameter Operating Weight 7900kg Rated Power 129kw/2200rpm Max.Breakout 150kN Bucket Capacity 2.4m³ Rated Operating Load 4000kg Dumping Height 2870mm Dumping Distance 1080mm Wheel base 2900mm Emissions Euro 2 Dimensions 7800*2718*3480mm
Model WZ10-20 WZ15-26 WZ20-28 WZ25-30 Dimensions 5500*1720*2650mm 5800*1850*2750mm 6200*1960*2850mm 6800*2040*2850mm Operating Weight 3400 kg 4800 kg 5400 kg 6000 kg Power 40 kw (55 hp) 55 kw (75 hp) 76 kw (104 hp) 92 kw (125 hp) Gradeability 30° 30° 30° 30° Travel Speed 0 – 26 km/h 0 – 26 km/h 0 – 30km/h…
