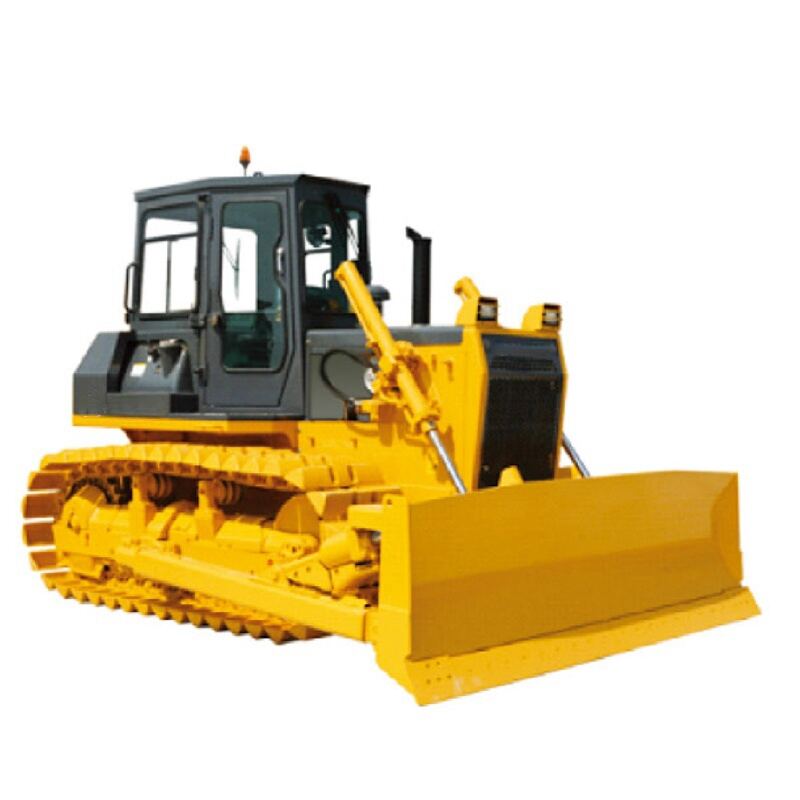

130HP SD13 SD13S SD13C Brand Crawler Bulldozer
Feel free contact with our sale!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
|
Parameter name
|
SD13 (Standard version)
|
SD13S (Wetland version)
|
SD13C (Coal version)
|
|
Performance parameters
|
|||
|
Operating weight (Kg)
|
13700
|
14900
|
13900
|
|
Ground pressure (kPa)
|
53.8
|
38.4
|
54.6
|
|
Engine
|
|||
|
Engine model
|
SC8D143G2B1(China-II)/SC8DK(China-III)
|
SC8D143G2B1(China-II)/SC8DK(China-III)
|
SC8D143G2B1(China-II)/SC8DK(China-III)
|
|
Rated power/
rated speed (kW/rpm) |
105/1900
|
105/1900
|
105/1900
|
|
Overall dimensions
|
|||
|
Overall dimensions of machine (mm)
|
4492*3185*2950
|
4492*3510*3000
|
4492*3700*2950
|
|
Driving performance
|
|||
|
Forward speed (km/h)
|
F1:0-3.2 F2:0-5.9 F3:0-9.8
|
F1:0-3.2 F2:0-5.9 F3:0-9.8
|
F1:0-3.2 F2:0-5.9 F3:0-9.8
|
|
Reversing speed (km/h)
|
R1:0-3.9 R2:0-7.1 R3:0-11.9
|
R1:0-3.9 R2:0-7.1 R3:0-11.9
|
R1:0-3.9 R2:0-7.1 R3:0-11.9
|
|
Chassis System
|
|||
|
Center distance of track (mm)
|
1880
|
1880
|
1880
|
|
Width of track shoes (mm)
|
460
|
700
|
560
|
|
Ground length(mm)
|
2365
|
2365
|
2365
|
|
Tank capacity
|
|||
|
Fuel tank (L)
|
300
|
300
|
300
|
|
Working device
|
|||
|
Blade type
|
Straight tilting blade
|
Straight tilting blade
|
Coal blade
|
|
Digging depth (mm)
|
590
|
590
|
590
|
|
Ripper type
|
Three-shank
|
——
|
——
|
|
Ripping depth (mm)
|
567
|
——
|
——
|
