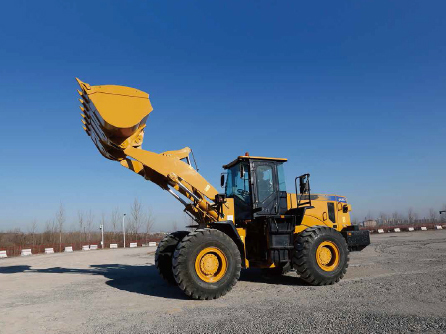

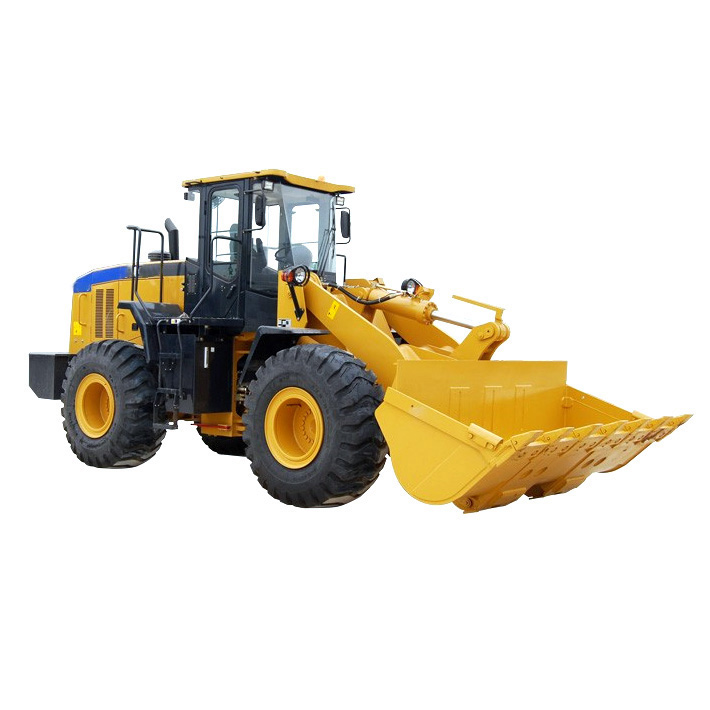

Brand New 3 Tons Mini Wheel Loader 636F Pay Loader with Rock Bucket
Feel free contact with our sale!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
|
Main Specifications
|
||
|
Rated load capacity (Kg)
|
3000
|
|
|
Operating weight with standard bucket (Kg)
|
9700
|
|
|
Bucket capacities (M3)
|
1.7
|
|
|
Wheelbase (mm)
|
2850
|
|
|
Overall Dimensions L*W*H (mm)
|
7383x2348x3152
|
|
|
Engine
|
||
|
Model
|
WEICHAI WP4.6NG125E473
|
|
|
Rated power (kW)
|
92
|
|
|
Displacement (L)
|
4.58
|
|
|
Operating Specifications
|
||
|
Dump clearance (mm)
|
3000
|
|
|
Articulated angle (°)
|
36±1°
|
|
|
Hydraulic system
|
||
|
Implement system type
|
Quantitative shunt hydraulic system
|
|
|
System Pressure setting (Mpa)
|
17
|
|
|
Hydraulic cycle time (s)
|
8.1
|
|
|
Boom Raise time (s)
|
4.6
|
|
|
Steering system
|
||
|
System type
|
Load sensitive priority steering
|
|
|
System pressure setting (MPa)
|
14
|
|
|
Steering angle L/R ( °)
|
36 ±1°
|
|
|
Brake system
|
||
|
Service brake
|
Air cap clamp disc brake
|
|
|
Parking brake
|
Internal expansion drum brake
|
|
|
Transmission
|
||
|
Type
|
Fixed shaft transmission
|
|
|
Transmission gears
|
F4/R2
|
|
|
Torque converter type
|
Single stage 3 elements
|
|
|
Forward I/ Reverse I (km/h)
|
7.5/ 9.4
|
|
|
Forward II/ Reverse II (km/h)
|
13.5/29
|
|
|
Forward III/ Reverse III (km/h)
|
24
|
|
|
Forward IV/ Reverse IV (km/h)
|
39
|
|
