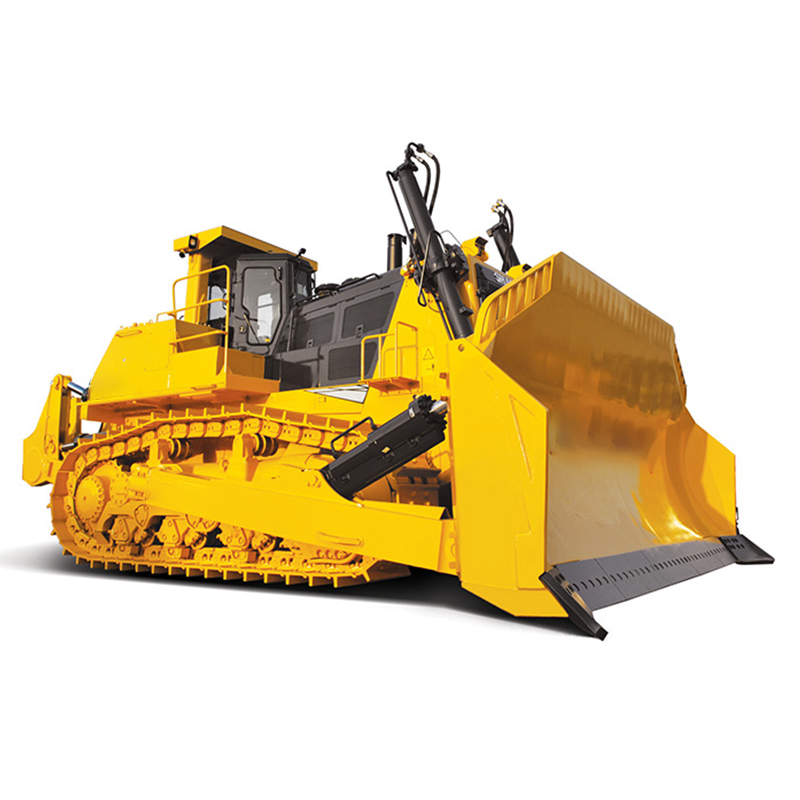

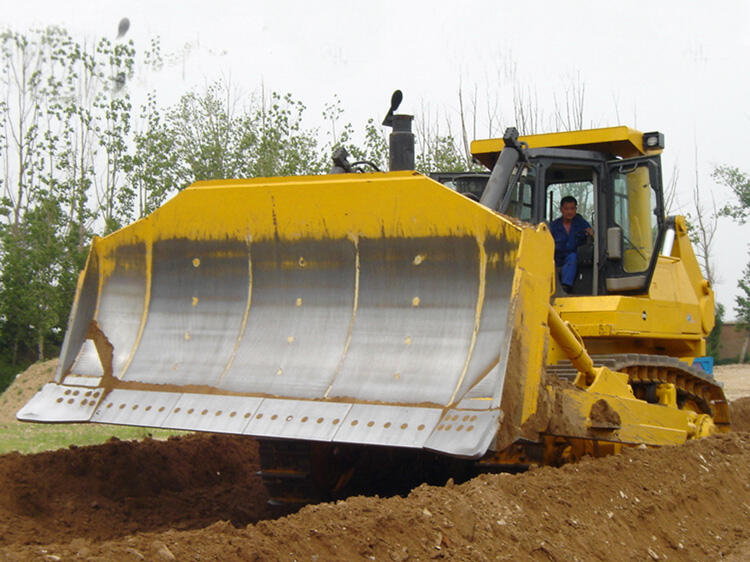

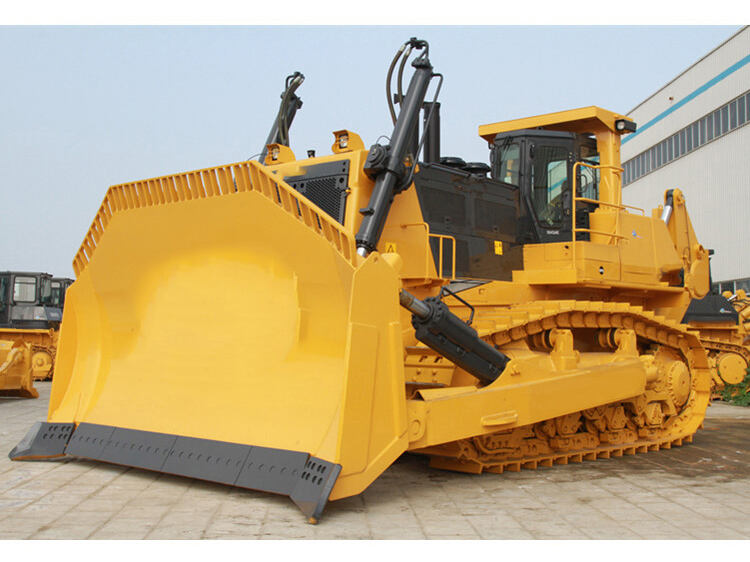

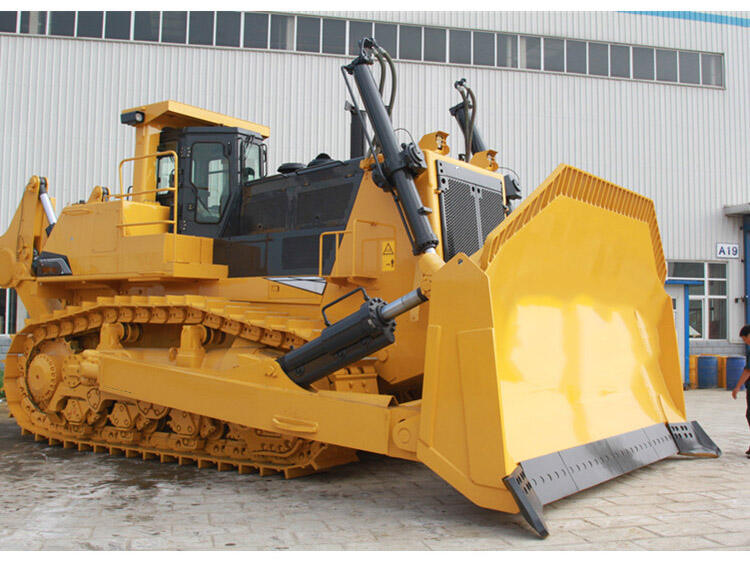

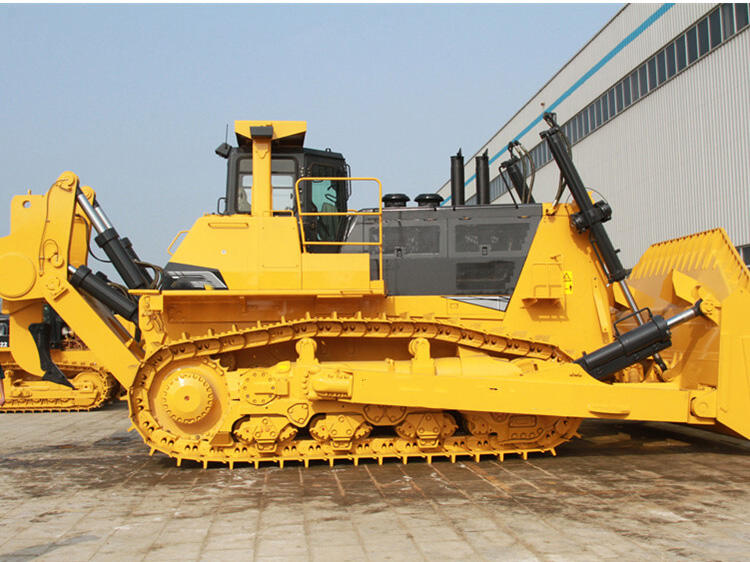

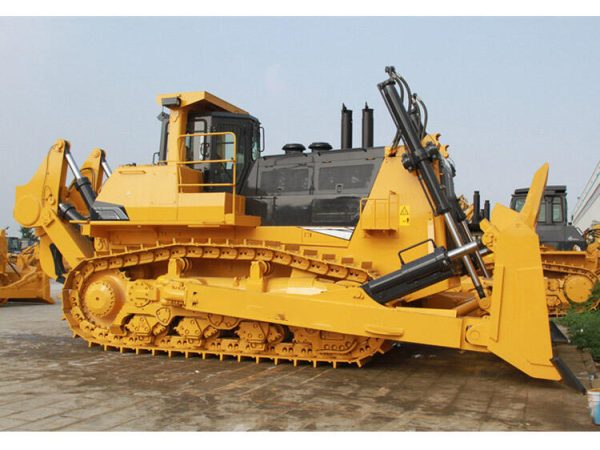

China 900HP Crawler Bulldozer Construction Machine SD90-5
Feel free contact with our sale!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
|
Engine
|
Model & type
|
Cum|mins QST30,4 stroke, 12 cylinder, water-cooled, turbocharged, V, direct injection,electronic control diesel engineoling diesel
engine |
|||||
|
Horsepower
|
Gross: 708kW/950HP@2100rpm; Net: 671kW/900HP@2100rpm
|
||||||
|
Number of cylinders
|
12-140 x 165 mm (bore x stroke)
|
||||||
|
Piston displacement
|
30.5 L
|
||||||
|
Operating weight
|
106.2 t (Ripper included)
|
||||||
|
Power transmission
system |
Torque converter
|
3-element, 1-stage, torque converter with lockup clutch
|
|||||
|
Transmission
|
Planetary gear, multiple-disc clutch,hydraulically-actuated and force-lubricated,three forward and reverse.
|
||||||
|
Main drive
|
First class spur gear
|
||||||
|
Steering clutch
|
Wet, multi plate spring press, hydraulic separation,normally closed
|
||||||
|
Steering brake
|
Wet, multi plate spring press, hydraulic separation,normally closed
|
||||||
|
Final drive
|
First class spur gear, first stage planetary gear reduction
|
||||||
|
Travel speed
|
Gear
|
1st
|
2nd
|
3rd
|
|||
|
Forward
|
0~3.5 km/h
|
0~6.3 km/h
|
0~10.9 km/h
|
||||
|
Reverse
|
0~4.7 km/h
|
0~8.4 km/h
|
0~14.3 km/h
|
||||
|
Undercarriage
system |
Minimum turning radius
|
4200 mm
|
|||||
|
Gradeability
|
30°
|
||||||
|
Stability
|
35°
|
||||||
|
Track gauge
|
2770 mm
|
||||||
|
Ground length/Ground pressure
|
4520/0.147 mm/MPa
|
||||||
|
Min. ground clearance
|
655 mm
|
||||||
|
Number of carrier rollers
|
2 (each side)
|
||||||
|
Number of track rollers
|
7 (each side)
|
||||||
|
Number of carriers
|
2 (each side)
|
||||||
|
Track type
|
Master link, single grouser, sealed and lubricated.
|
||||||
|
Width of track shoes
|
710 mm
|
||||||
|
Pitch
|
317.5 mm
|
||||||
|
Number of track shoes
|
41 (each side)
|
||||||
|
Blade
|
Blade type
|
Semi-U blade
|
|||||
|
Dozing capacity
|
39 m 3
|
||||||
|
Blade width
|
5265 x 2690 mm
|
||||||
|
Maximum drop below ground of blade
|
1010 mm
|
||||||
|
Maximum lift height
|
1620 mm
|
||||||
|
Maximum tilt
|
1290 mm
|
||||||
|
Riipper
(Optional) |
Ripper type
|
Single-shank ripper
|
|||||
|
Ripping depth of ripper
|
1670 mm
|
||||||
|
Lifting height of ripper
|
1300 mm
|
||||||
