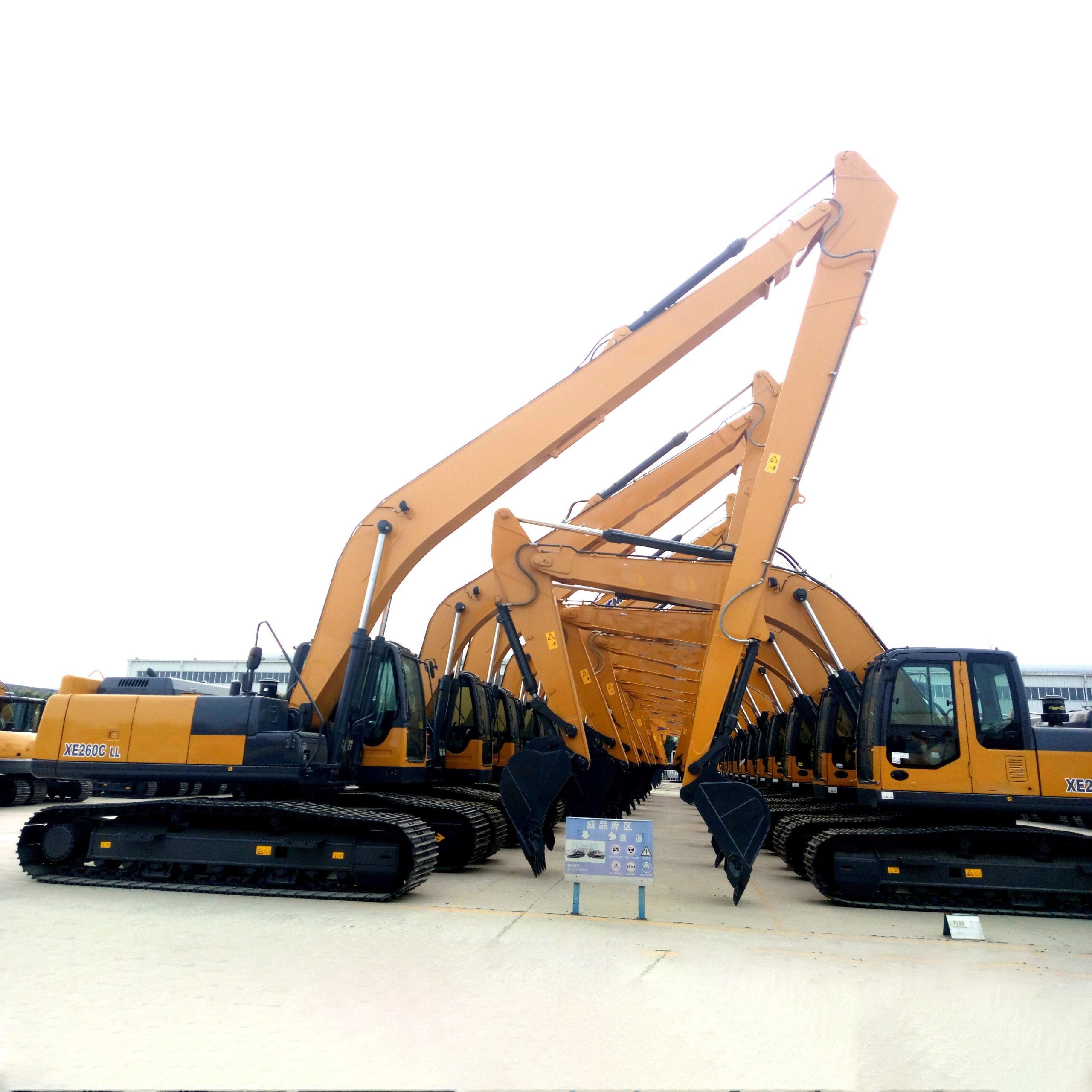

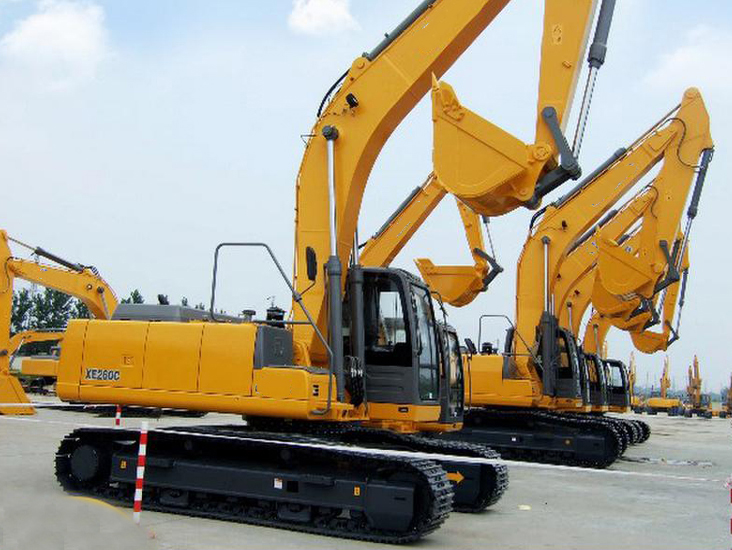

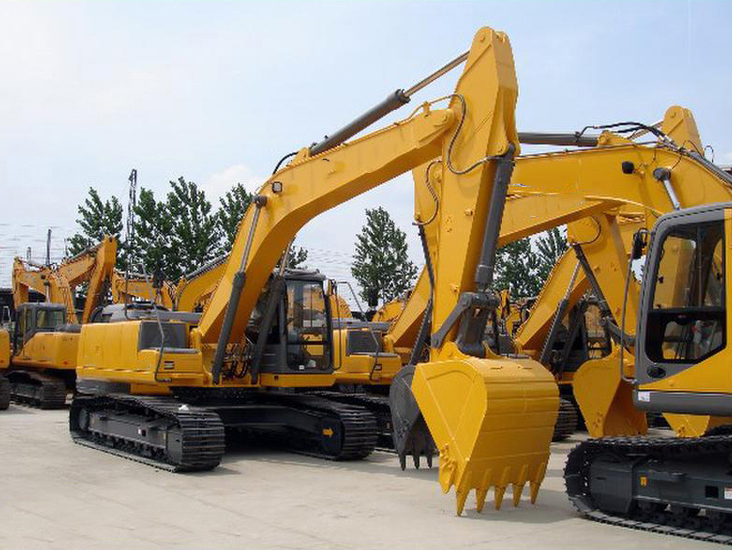

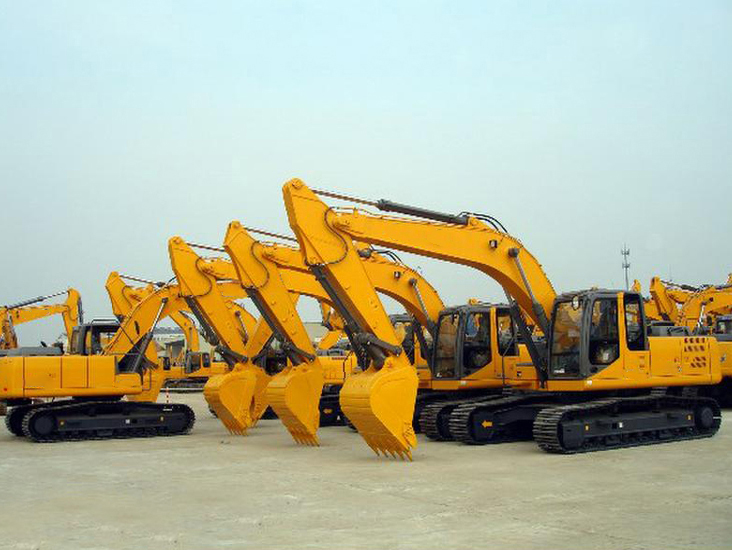

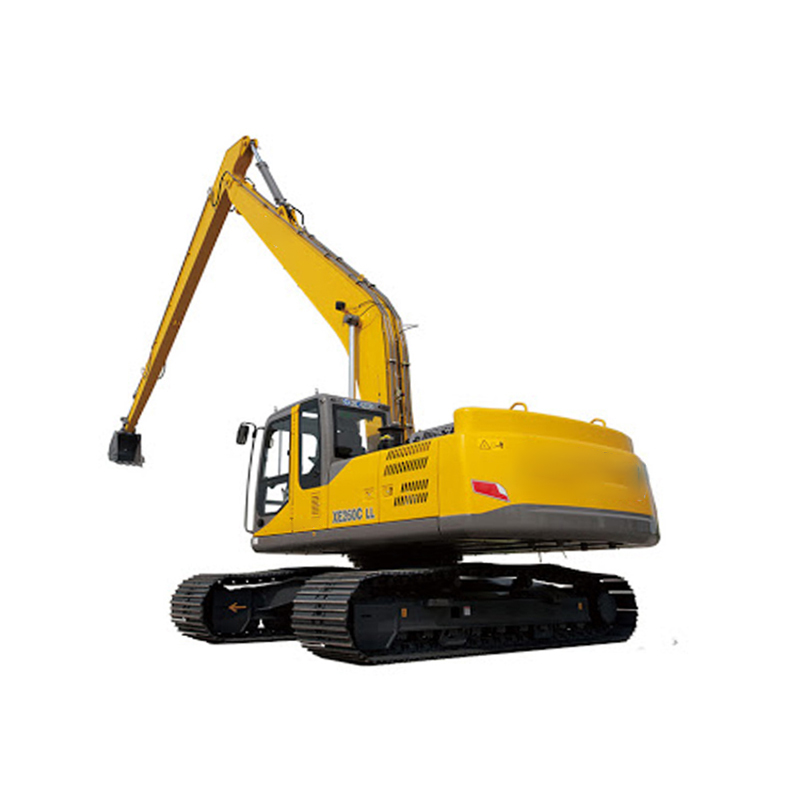

Cost-effective Huge Crawler Excavator XE270DLL 0.4cbm Hydraulic Multifunctional
Feel free contact with our sale!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
|
Sales model
|
Unit
|
XE270DLL
|
|
|
Operating weight
|
Kg
|
28300
|
|
|
Bucket capacity
|
m³
|
0.4
|
|
|
Engine
|
Model
|
/
|
QSB7
|
|
Direct injection
|
/
|
√
|
|
|
Four strokes
|
/
|
√
|
|
|
Water cooling
|
/
|
√
|
|
|
Turbo-charging
|
/
|
√
|
|
|
No. of cylinders
|
/
|
6
|
|
|
Output power
|
kw/rpm
|
150/2050
|
|
|
Maximum torque/speed
|
N.m/rpm
|
825/1250
|
|
|
Displacement
|
L
|
6.7
|
|
|
Main performance
|
Travel speed
|
km/h
|
6.1/3.8
|
|
Swing speed
|
r/min
|
11.4
|
|
|
Gradeability
|
°
|
30
|
|
|
Ground pressure
|
kPa
|
41.9
|
|
|
Bucket digging force
|
kN
|
91
|
|
|
Arm digging force
|
kN
|
56
|
|
|
Maximum traction
|
kN
|
206
|
|
|
Hydraulic system
|
Rated flow of main pump
|
L/min
|
2×259
|
|
Main safety valve pressure
|
MPa
|
34.3/37
|
|
|
Travel system pressure
|
MPa
|
34.3
|
|
|
Rotary system pressure
|
MPa
|
25
|
|
|
Pilot system pressure
|
MPa
|
3.9
|
|
|
Oil Capacity
|
Fuel tank capacity
|
L
|
400
|
|
Hydraulic tank capacity
|
L
|
220
|
|
|
Engine oil capacity
|
L
|
19.5
|
|
|
Appearance size
|
Overall length
|
mm
|
13890
|
|
Overall width
|
mm
|
3390
|
|
|
Overall height
|
mm
|
3250
|
|
|
Width of platform
|
mm
|
2830
|
|
|
Track length
|
mm
|
4640
|
|
|
Overall width of chassis
|
mm
|
3390
|
|
|
Track width
|
mm
|
800
|
|
|
Length to center of rollers
|
mm
|
3790
|
|
|
Track gauge
|
mm
|
2590
|
|
|
Counterweight clearance
|
mm
|
1090
|
|
|
Min. ground clearance
|
mm
|
495
|
|
|
Min. tail swing radius
|
mm
|
2955
|
|
|
Track height
|
mm
|
988
|
|
|
Working scope
|
Max. digging height
|
mm
|
13250
|
|
Max. dumping height
|
mm
|
10955
|
|
|
Max. digging depth
|
mm
|
15040
|
|
|
Maximum depth cut for 2240mm(8 ft) level bottom
|
mm
|
–
|
|
|
Max. vertical wall digging depth
|
mm
|
13210
|
|
|
Max. digging radius
|
mm
|
18275
|
|
|
Min. swing radius
|
mm
|
7030
|
|
|
Standard configuration
|
Length of boom
|
mm
|
9700
|
|
Length of arm
|
mm
|
7880
|
|
|
Bucket capacity
|
m³
|
0.4
|
|
|
Optional configuration
|
Length of boom
|
m³
|
/
|
|
Length of arm
|
m³
|
/
|
|
|
Bucket capacity
|
m³
|
/
|
|
