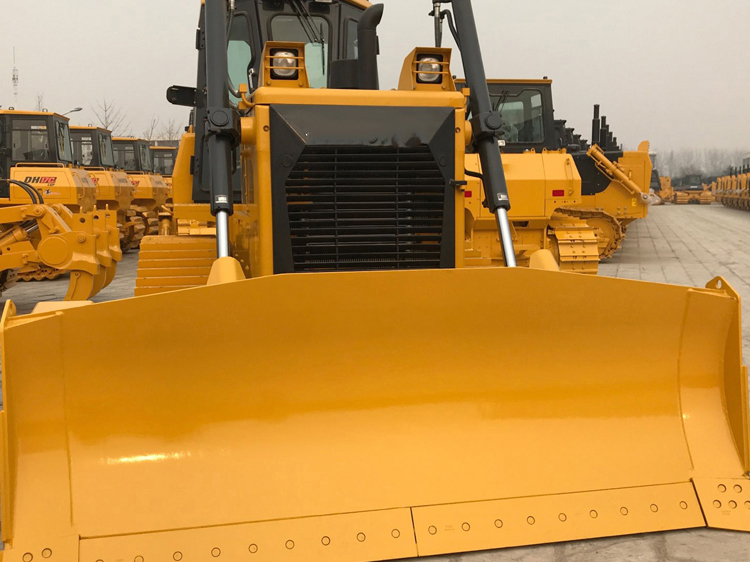

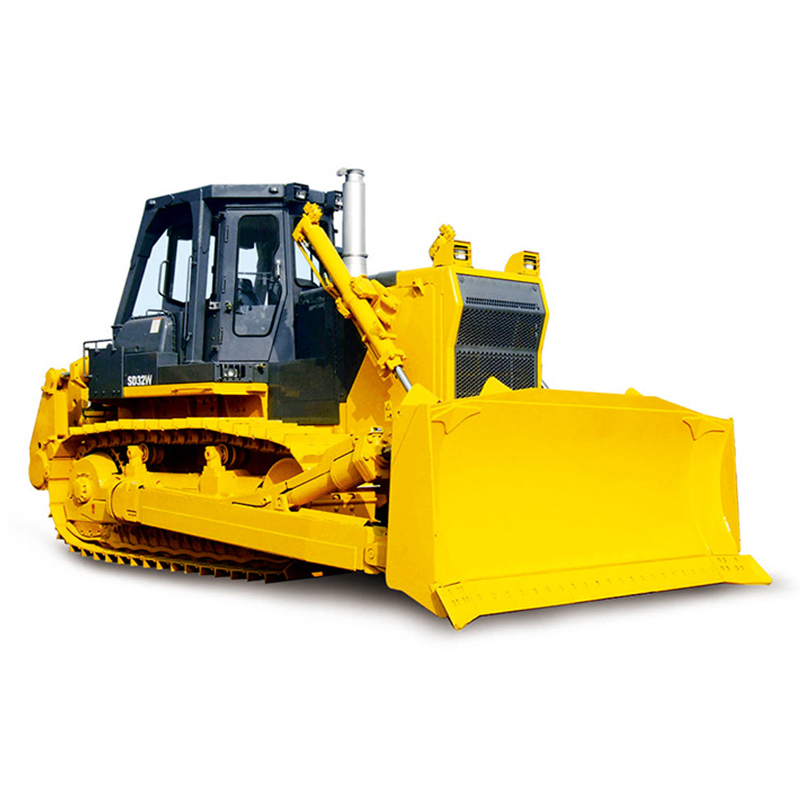

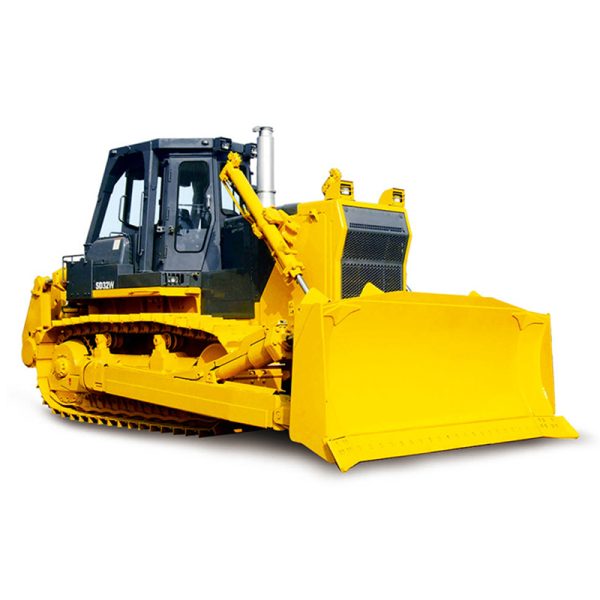

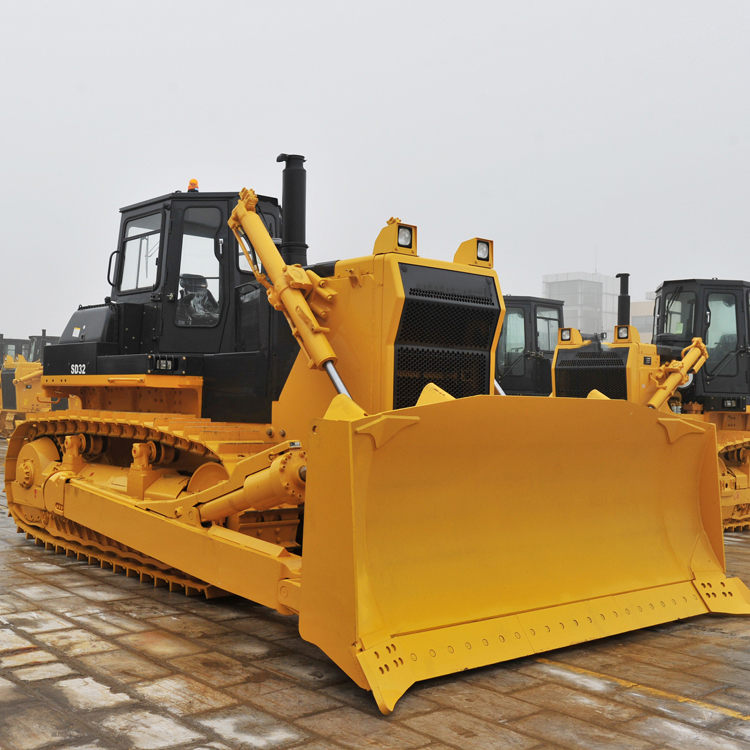

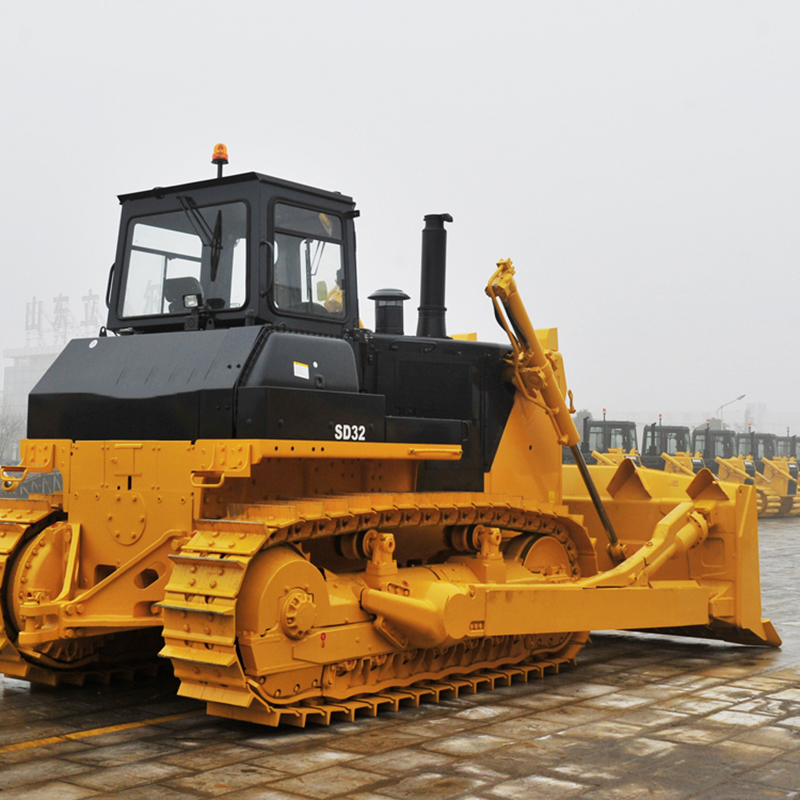

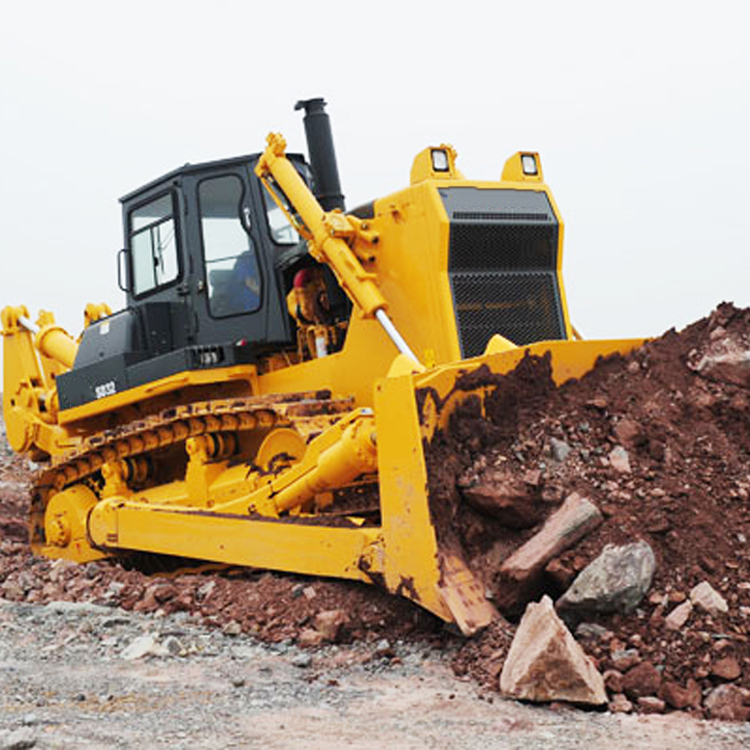

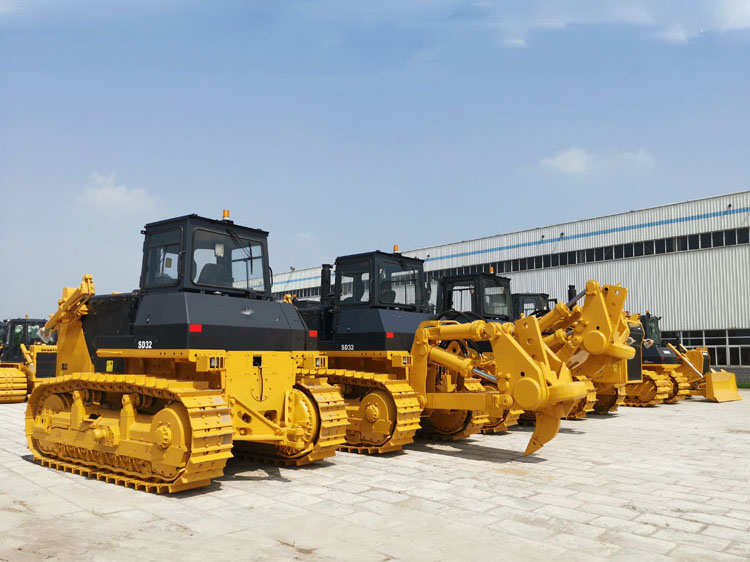

Earthmoving Machinery Crawler Dozer SD32 320HP Bulldozer With Low Fuel Consumption
Feel free contact with our sale!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
|
Parameter name
|
SD32 (Standard version)
|
SD32C (Coal version)
|
SD32W (Rock version)
|
SD32D (Desert version)
|
|
Performance parameters
|
||||
|
Operating weight (Kg)
|
40200
|
40500
|
40900
|
39500
|
|
Ground pressure (kPa)
|
97.7
|
98.4
|
99.4
|
96
|
|
Engine
|
||||
|
Engine model
|
WP12/QSNT-C345
|
QSNT-C345
|
WP12/QSNT-C345
|
QSNT-C345
|
|
Rated power/rated speed (kW/rpm)
|
257/2000，258/2000
|
257/2000
|
258/2000，257/2000
|
257/2000
|
|
Overall dimensions
|
||||
|
Overall dimensions of machine (mm)
|
8650*4130*3760
|
8650*4755*3760
|
8650*4130*3760
|
8650*4130*3760
|
|
Driving performance
|
||||
|
Forward speed (km/h)
|
F1:0-3.6 F2:0-6.6 F3:0-11.5
|
F1:0-3.6 F2:0-6.6 F3:0-11.5
|
F1:0-3.6 F2:0-6.6 F3:0-11.5
|
F1:0-3.6 F2:0-6.6 F3:0-11.5
|
|
Reversing speed (km/h)
|
R1:0-4.4 R2:0-7.8 R3:0-13.5
|
R1:0-4.4 R2:0-7.8 R3:0-13.5
|
R1:0-4.4 R2:0-7.8 R3:0-13.5
|
R1:0-4.4 R2:0-7.8 R3:0-13.5
|
|
Chassis System
|
||||
|
Center distance of track (mm)
|
2140
|
2140
|
2140
|
2140
|
|
Width of track shoes (mm)
|
560/610/660/710
|
560/610/660/710
|
560/610/660/710
|
560/610/660/710
|
|
Ground length（mm）
|
3150
|
3150
|
3150
|
3150
|
|
Tank capacity
|
||||
|
Fuel tank (L)
|
640
|
640
|
640
|
640
|
|
Working device
|
||||
|
Blade type
|
Straight tilting blade , Angle Blade and Semi-U blade
|
Semi-U coal blade and coal U-blade
|
Rock straight tilting blade, rock angle blade and rock semi-U blade
|
Straight tilting blade , Angle Blade and Semi-U blade
|
|
Digging depth (mm)
|
560/630/560
|
560
|
560/630/560
|
560/630/560
|
|
Ripper type
|
Single-shank three-shank
|
Single-shank three-shank
|
Single-shank three-shank
|
Single-shank three-shank
|
|
Ripping depth (mm)
|
1,250 (Single-shank) and 842 (Three-shank)
|
1,250 (Single-shank) and 842 (Three-shank)
|
1,250 (Single-shank) and 842 (Three-shank)
|
1,250 (Single-shank) and 842 (Three-shank)
|
