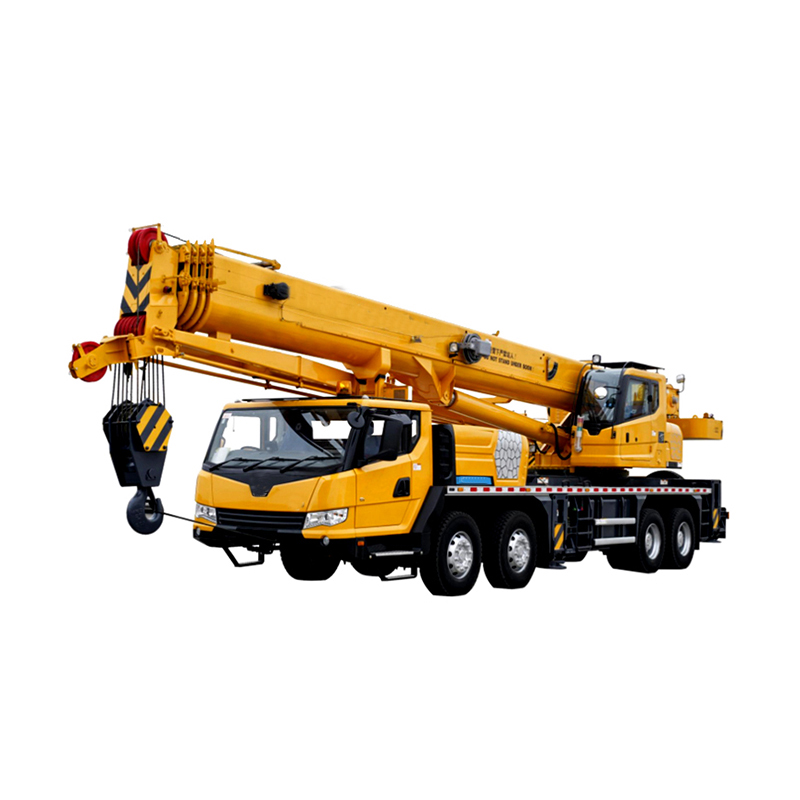

High Efficiency 247KW Pickup Truck Crane Xct50_y For Right/Left-hand Drive
Feel free contact with our sale!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
|
Item
|
Unit
|
XCT50_Y
|
||
|
Dimensions (length x width x height)
|
mm
|
14045×2790×3615
|
||
|
Total vehicle mass in travel configuration
|
kg
|
40100
|
||
|
Axle load
|
1st and 2nd axle
|
kg
|
8500
|
|
|
3rd and 4th axle
|
kg
|
11550
|
||
|
Engine rated power/rpm
|
kW/(r/min)
|
247/2200
|
||
|
Max. output torque/rpm
|
N.m/(r/min)
|
1350/1100-1600
|
||
|
Max. travel speed
|
km/h
|
90
|
||
|
Min. turning diameter
|
m
|
24
|
||
|
Min. ground clearance
|
mm
|
260
|
||
|
Approach angle
|
°
|
19
|
||
|
Departure angle
|
°
|
13
|
||
|
Max. grade ability
|
%
|
40
|
||
|
Fuel consumption per 100 km
|
L
|
38
|
||
|
Max. total rated lifting capacity
|
t
|
50
|
||
|
Min-rated working radius
|
m
|
3
|
||
|
Max. load moment
|
Base boom
|
kN.m
|
2009
|
|
|
Fully-extended boom
|
kN.m
|
933
|
||
|
Outrigger span
|
Longitudinal
|
m
|
6.1
|
|
|
Lateral
|
m
|
7.1
|
||
|
Hoist height
|
Base boom
|
m
|
11.2
|
|
|
Fully-extended boom
|
m
|
43.3
|
||
|
Boom length
|
Base boom
|
m
|
11.4
|
|
|
Fully-extended boom
|
m
|
43.5
|
||
|
Jib offset angle
|
°
|
0, 15, 30
|
||
|
Boom raising time
|
s
|
≤40
|
||
|
Boom fully extends the time
|
s
|
≤90
|
||
|
Hosting
|
Main winch
|
m/min
|
≥128
|
|
|
Hoisting speed (single line, 4th layer, no load)
|
Auxiliary winch
|
m/min
|
≥128
|
|
