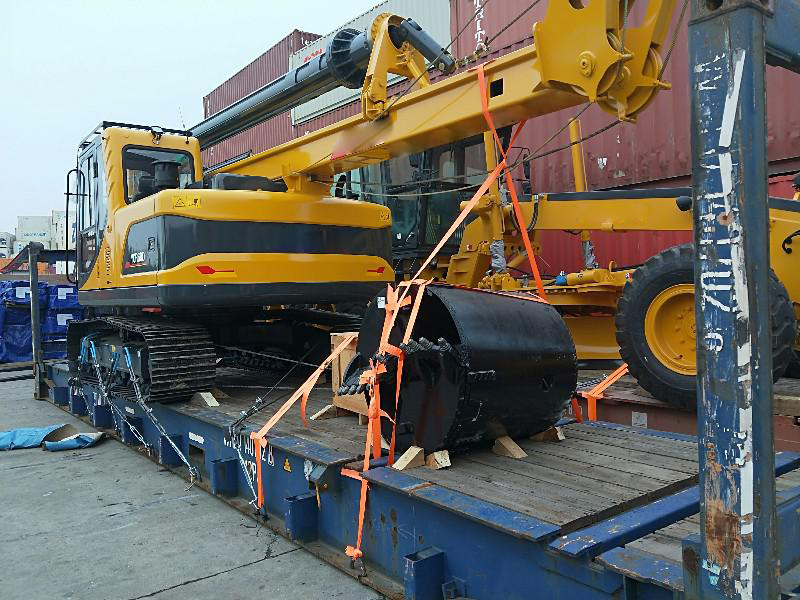

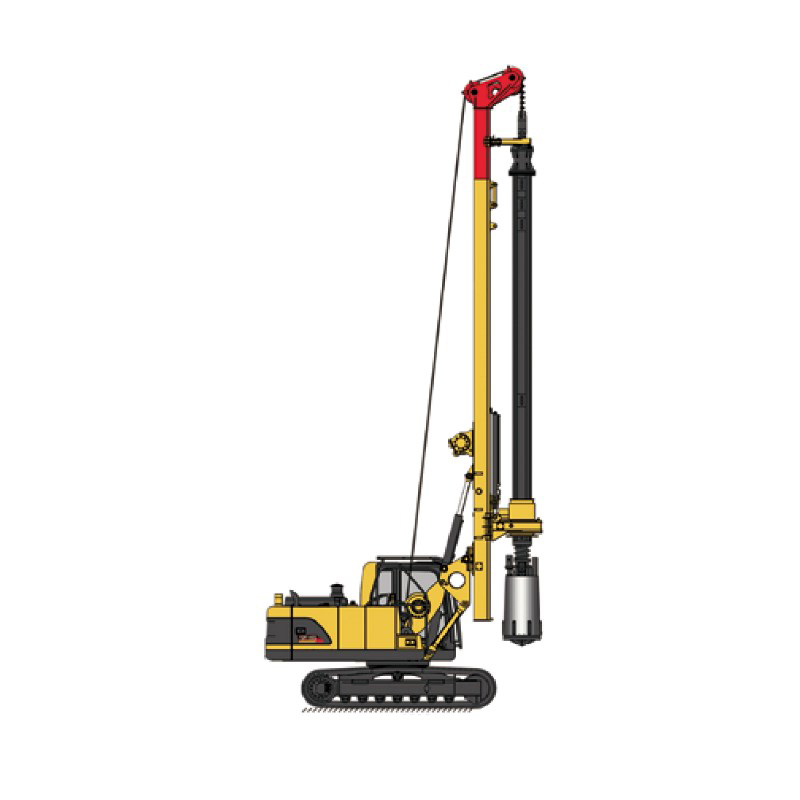

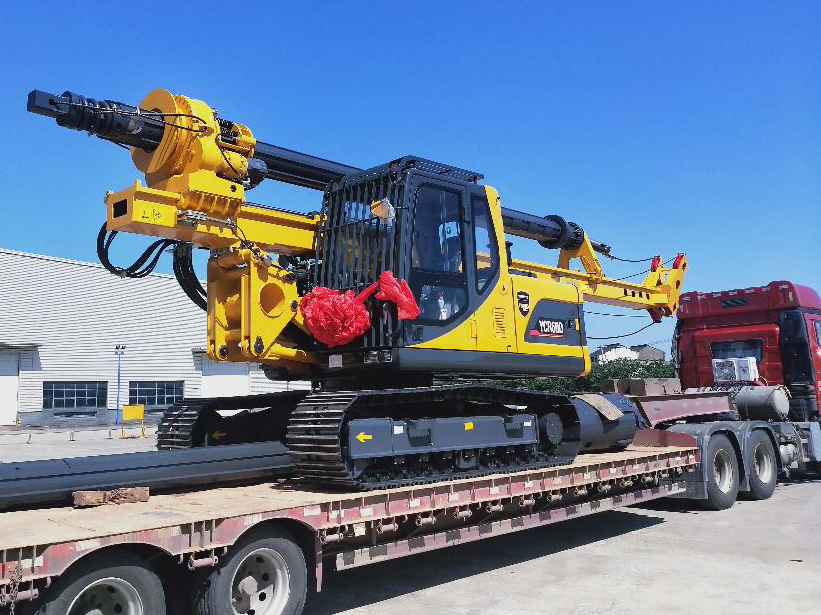

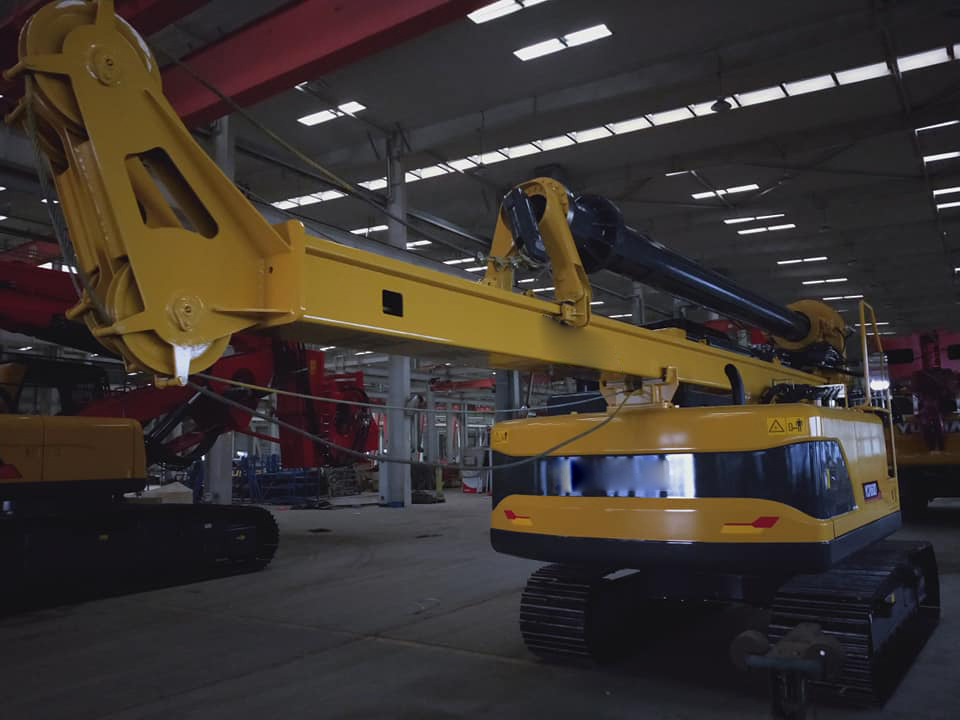

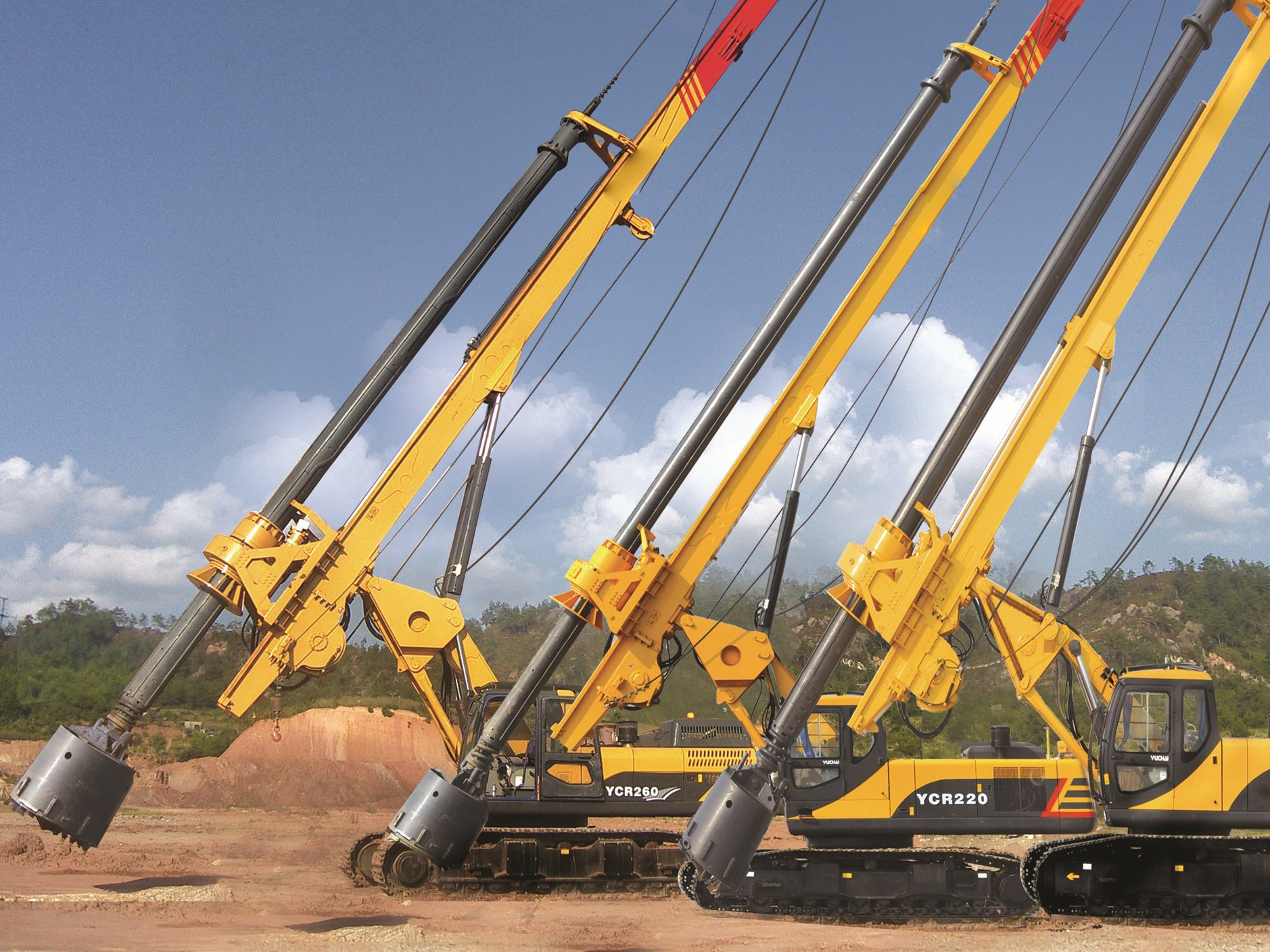

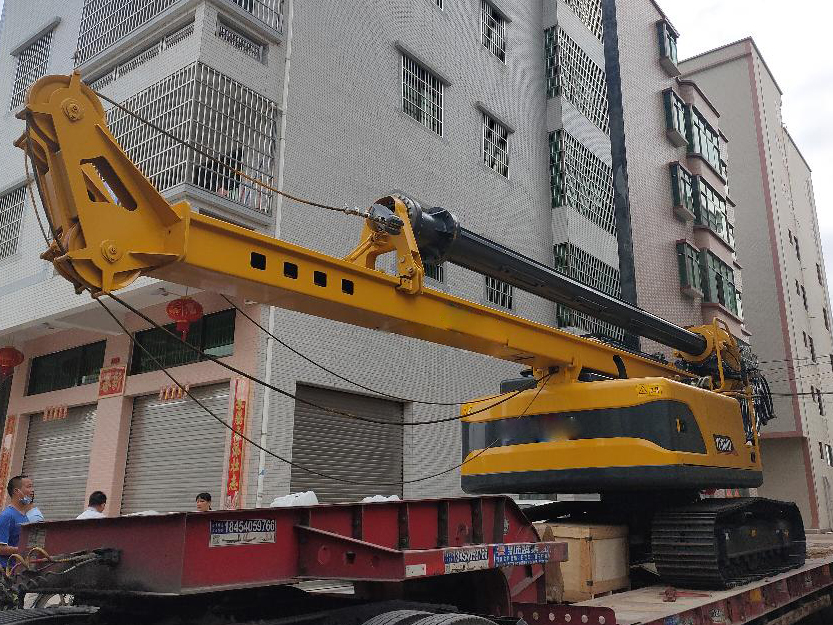

Hydraulic Rotary Drilling Rig 25ton 27M Drilling Depth YCR60 YCR65E
Feel free contact with our sale!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
|
Item
|
Parameter
|
|
Operating Weight
|
22000kg
|
|
Rated Power
|
92kW/2200rpm
|
|
Engine Model
|
YCF36125
|
|
Max. output torque
|
65kN.m
|
|
Rotary speed
|
35rpm
|
|
Max pulling force of main winch
|
95kN
|
|
Max pulling speed of main winch
|
85m/min
|
|
Max drilling diameter
|
1200mm
|
|
Max drilling depth
|
27m
|
|
Dimensions
|
7360*2260*3000mm
|
