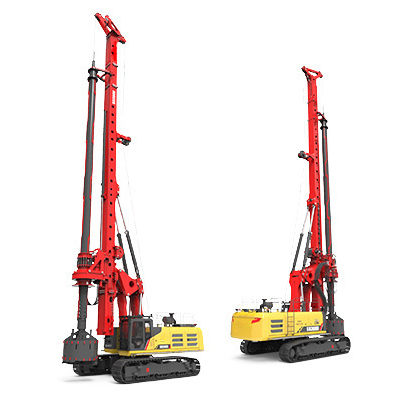

Rotary Drilling Rig SR265 275KN on Sale with Spare Parts
Feel free contact with our sale!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
|
Model
|
SR265-C10
|
SR285R-C10
|
SR335R-C10
|
|
Max. Pile Diameter
|
2200mm
|
2300mm
|
2500/2000mm
|
|
Max. Pile Depth
|
73/58m
|
94/61m
|
100/65m
|
|
Rotary Drive
|
|||
|
Rated Output Torque
|
265kN·m
|
285kN·m
|
335kN·m
|
|
Rated Speed
|
5~25rpm
|
285rpm
|
5~27rpm
|
|
Crowd System
|
|||
|
Crowd Force
|
230kN
|
260kN
|
275kN
|
|
Line Pull
|
275kN
|
335kN
|
335kN
|
|
Stroke
|
5000mm
|
6000mm
|
6000mm
|
|
Main Winch
|
|||
|
Lifting Capacity
|
275kN
|
335kN
|
335kN
|
|
Rope Diameter
|
32mm
|
36mm
|
36mm
|
|
Max. Line Speed
|
80m/min
|
72m/min
|
72m/min
|
|
Main Chassis
|
|||
|
Base Engine
|
6UZ1
|
6WG1
|
6WG1
|
|
Engine Power
|
257/2000kW/rpm
|
300/1800kW/rpm
|
300/1800kW/rpm
|
|
Emission Regulation
|
Tier III
|
Tier III
|
Tier III
|
|
Overall Machine
|
|||
|
Overall Height
|
23870mm
|
25425mm
|
26395mm
|
|
Operating Weight
|
85T
|
100T
|
110T
|
|
Transport Width
|
3540mm
|
3490mm
|
3490mm
|
|
Transport Height
|
3685mm
|
3690mm
|
3690mm
|
