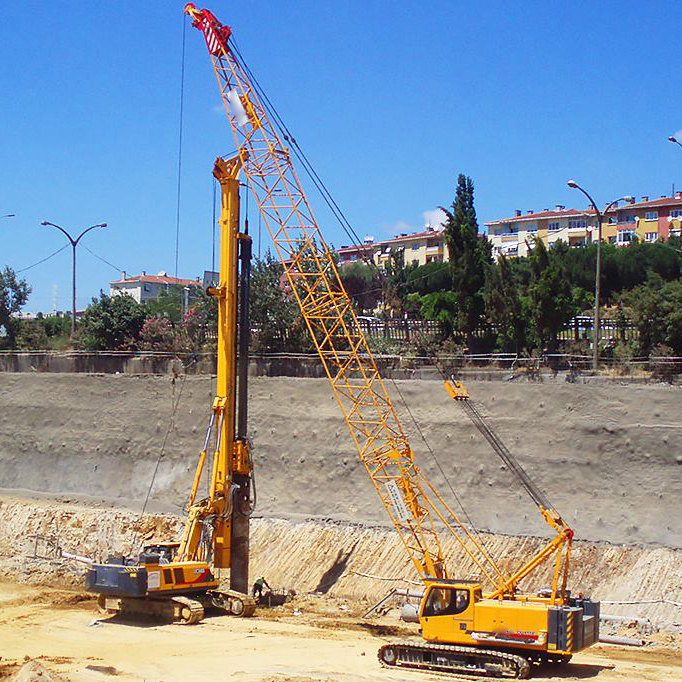

XR160E Crawler Rotary Drilling Rig High-Quality Mine Drilling Equipment
Feel free contact with our sale!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
|
Model
|
Unit
|
XR160E
|
|
|
Engine
|
Rated power
|
kW
|
133
|
|
Power unit
|
Max. output torque
|
kN.m
|
150
|
|
Rotate speed
|
r/min
|
6~28
|
|
|
Max. drilling diameter
|
mm
|
800
|
|
|
Max. drilling depth
|
m
|
20
|
|
|
Max. extraction force
|
kN
|
400
|
|
|
Main winch
|
Max. winch speed
|
m/min
|
75
|
|
Diameter of steel rope
|
mm
|
28
|
|
|
Vice winch
|
Max. elevation force
|
kN
|
50
|
|
Max. winch speed
|
m/min
|
60
|
|
|
Drilling mast Inclination
|
Lateral
|
°
|
3
|
|
Chassis
|
Max. walking speed
|
km/h
|
3.2
|
|
Max gradeability
|
%
|
40
|
|
|
Min. ground clearance
|
mm
|
352
|
|
|
Track shoe width
|
mm
|
800
|
|
|
Track shoe’s largest overall width
|
mm
|
2960-4100
|
|
|
Hydraulic system
|
Working pressure
|
Mpa
|
32
|
|
Machine working quality/Transporation quality
|
t
|
48/43
|
|
|
Boundary dimension
|
Working condition
|
mm
|
8620*4100*22845
|
|
L*W*H
|
Transporation condition
|
mm
|
13610*2960*3040
|
