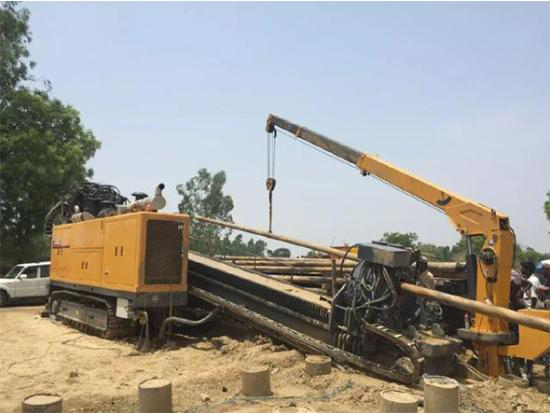

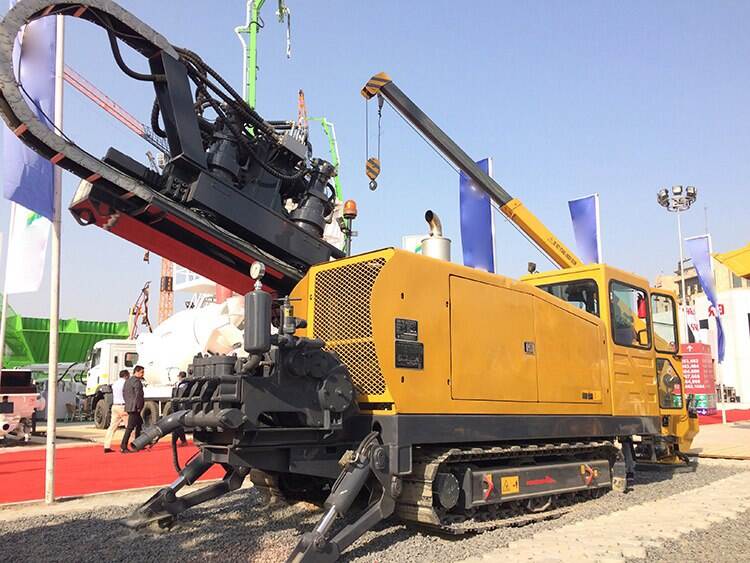

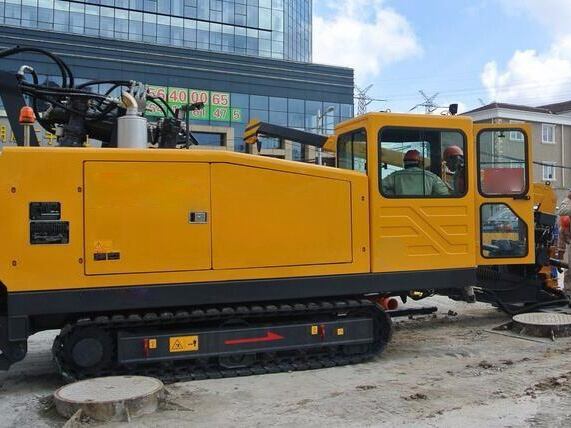

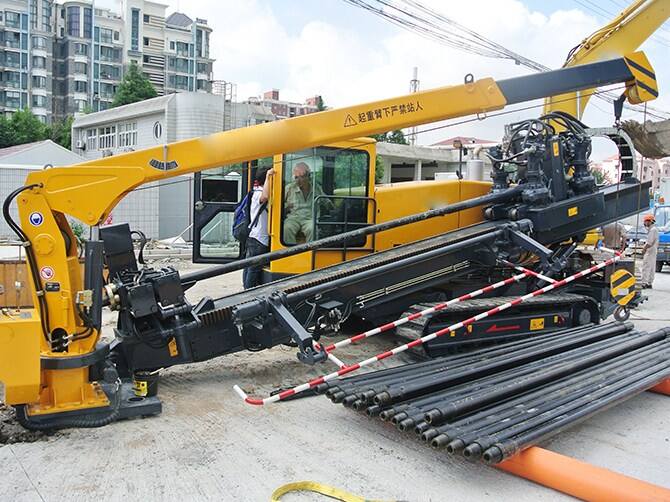

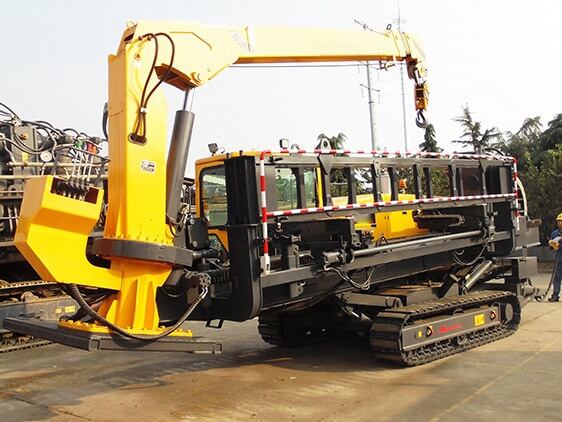

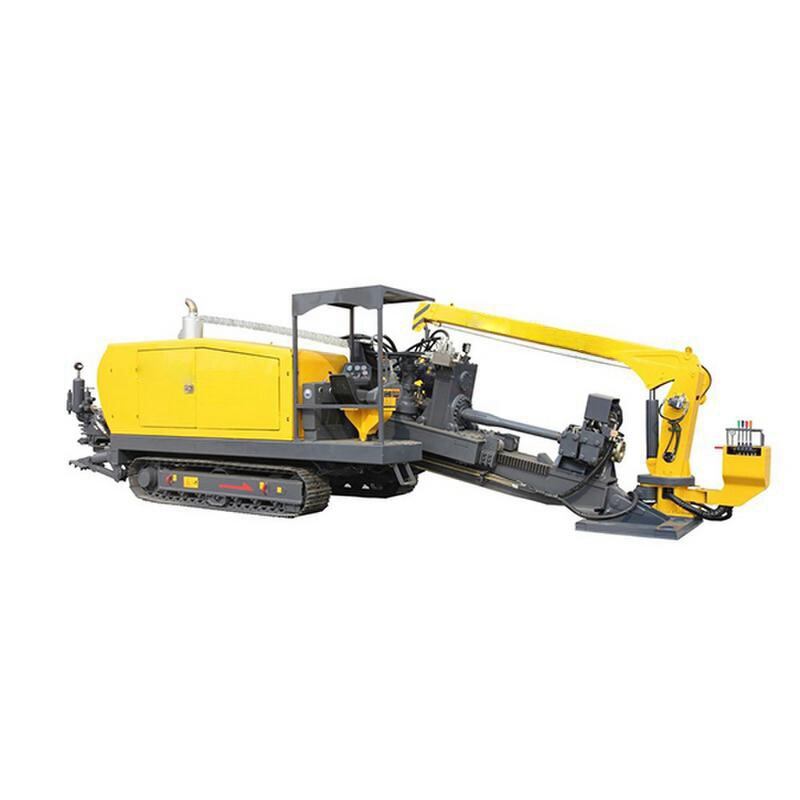

XZ450 194kw Horizontal Directional Drill Rig
Feel free contact with our sale!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Model
|
Unit
|
XZ450
|
Engine
|
Cummins
|
|
Rated power
|
kW
|
194
|
Push-pull
|
Rack and pinion
|
|
Max. pullback/thrusting
|
kN
|
450/450
|
Spindle torque (max)
|
N.m
|
17000
|
Spindle speed
|
r/min
|
0-135
|
Taeling speed of power head
|
m/min
|
0-38
|
Backreaming diameter
|
mm
|
1000
|
Pipe length(single)
|
m
|
4.5
|
Pipe diameter
|
mm
|
89
|
Entry angle
|
°
|
10/20
|
Mud flow rate (max)
|
L/min
|
500
|
Mud pressure (max)
|
bar
|
10
|
Overall weight
|
T
|
18
|
Dimension (L*W*H)
|
mm
|
8960*2480*2570
|
